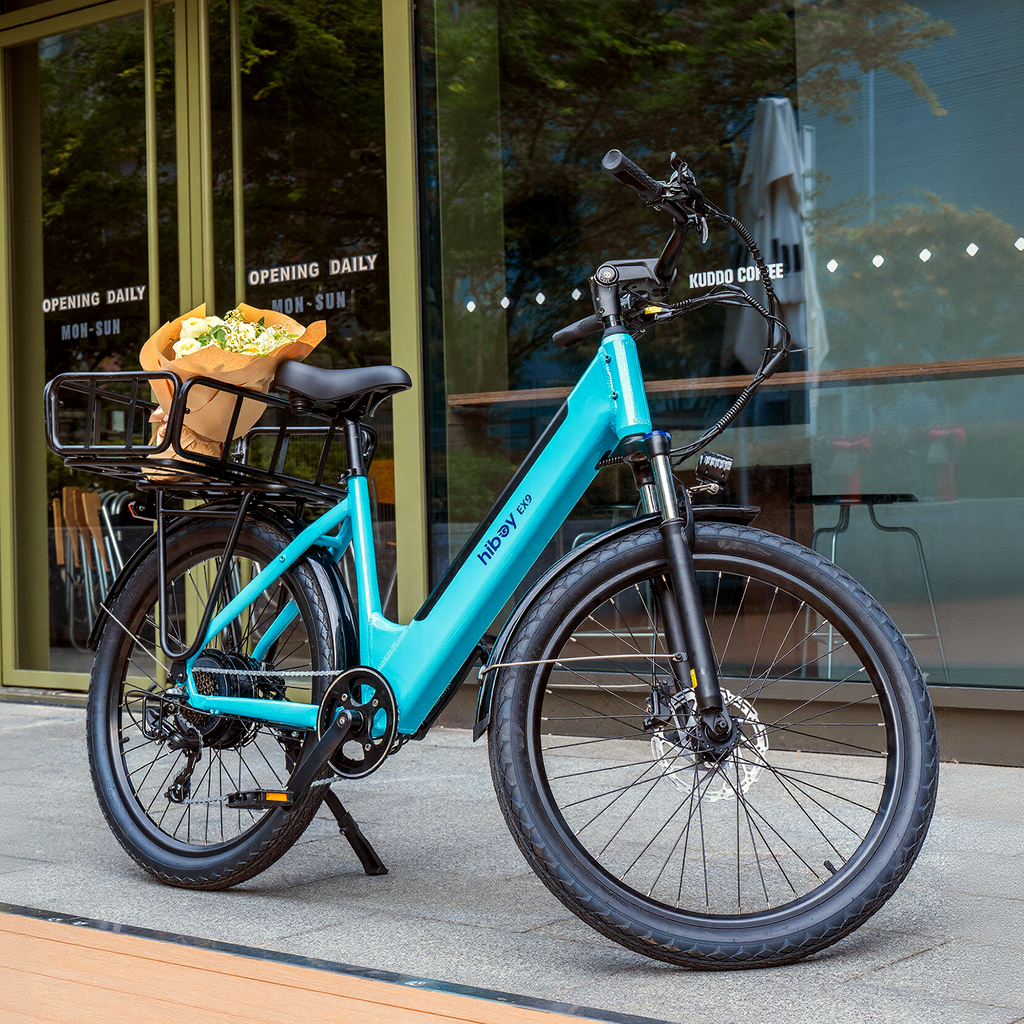

Hiboy EX9 Urban Commuter Electric Bike blue

🚴 General Overview

• Model: Hiboy EX9

• Type: Urban commuter e-bike

• Frame Design: Step-through

⚙️ Technical Specifications

• Motor: 750W nominal / 1000W peak

• Torque: 65 Nm

• Top Speed: 32 km/h (approx. 20 mph)

• Battery: 48V 11.6Ah removable lithium-ion

• Range:

  • Pure electric mode: Up to 50 km

  • Pedal assist mode: Up to 100 km

• Charging Time: 7–8 hours

• Max Load Capacity: 330 lbs (150 kg)

• Recommended Rider Height: 4'9" – 6'5"

• Max Climbing Capability: 20% incline

• IP Rating: Bike IPX4, Battery IPX5

🛞 Tires & Suspension

• Tires: 26" × 2.5" pneumatic

• Suspension: 80mm front fork with lockout

• Brakes: Dual hydraulic disc brakes with power-off feature

📐 Dimensions

• Package Size: 57.48 × 10.43 × 34.5 inches

• Package Weight: 64 lbs (29 kg)

🔋 Riding Modes & Features

• Modes: Bike / Pedal Assist / Pure Electric / Walk Mode

• Pedal Assist Levels: 5

• Display: Large LED with USB charging port

• Handlebar: Adjustable stem (tilts up to 60°)

• Rear Rack: Sturdy, compatible with child seats and panniers

• Lights: Front and rear brake lights

• Assembly: 90% pre-assembled

📦 Included in the Box

• EX9 E-bike ×1

• Charger ×1

• User Manual ×1

• Installation Tools ×2

• Pedals ×2

• Battery Keys ×2

• Hex Wrenches ×3

• Headlight ×1

• Phillips + 5mm Hex Tool ×1

• Skewer ×1

• End Nut ×1

• Springs ×2

The New Standard for Urban Riding
The Hiboy EX9 is crafted for riders who expect more from every journey. With a minimalist design and professional-grade performance,
it blends power, comfort, and style into one seamless experience.

Featuring Hiboys first dual-sided torque sensor, a 1000W peak motor, and up to 62 miles of range, EX9 delivers smooth, confident rides
through every corner of the city. From weekday commutes to weekend escapes, its built to match the rhythm of modern urban life.
